Agilent J1407A
上传作者:2020-05-28 10-32-26 更新时间:handler

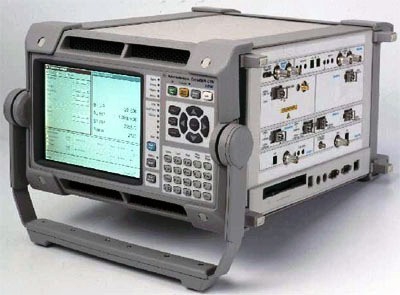

Agilent Omniber 720 J1407A Communication Analyzer



Up for sale is an Agilent OmniBER J1407A OC-48/STM-16 Analyzer with the following:

Options installed:002: SDH(ITU-T)/SONET104: 1310nm optical interface and BER601: LAN+RS232+HPIB Remote ControlOptical Interface CardMultiRate AnalyzerClock10 Base-T

Agilent OmniBER 720 J1407A OC-48/STM-16 Analyzer. The J1407A OmniBER 720 Analyzer Mainframe communications performance analyzer is a single-box field-portable multi-rate SONET/SDH tester up to 2.5 Gb/s (OC-48/STM-16). The analyzer is ideally suited to installation, maintenance, commissioning and system verification of today's high-speed SONET/SDH and DWDM transmission systems

OC-48/12/3/1 and/or STM-16o/4o/1o/0oBulk payloads from STS-48c/STM-16c to VT 1.5/TU-11Auto-discovery of all received payload channelsError and alarm generation/measurementSONET/SDH alarm scanFull SONET/SDH overhead setup and monitoring, including text decode of: - sync. Status (S1) - APS messages (K1K2) - signal labels (C2 and V5)J0 section trace for DWDM testJ1 and J2 path trace for network path testingOptical power and line frequency measurementsLine frequency offsetPointer adjustments to Telcordia GR-253/ITU-T G.783Powerful thru-mode testing for SONET/SDH ring turn-up
